Type TMU-W
TMU-W004.247-1.png: High pressure Coriolis for Hydrogen Applications

High pressure Coriolis for Hydrogen Applications

  • Optimized for H2 application
  • 1000+ bar process pressure.
  • OIML R139:2018 Certificate.
  • for hydrogen refueling operations according to worldwide standard – SAE J2601.
  • Compact design.
  • Any mounting position.
Type TMU-T
TMU-T21-600x546.webp: Tantal-Coriolis for aggressive media

Tantal-Coriolis for aggressive media

  • Size up to DN100 / 4″
  • Measuring range 60…80.000 kg/h
  • Fully welded stainless steel housing 1.4301/304L
  • Measuring accuracy: 0.1%
  • Integrated heating jacket (optionally)

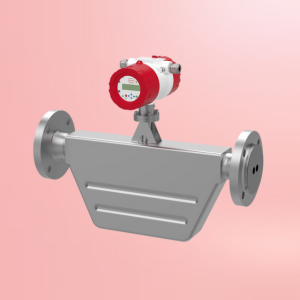

Type TMU
TMU-018-U-Profil-2zoll-Cl.242.png: Coriolis mass flow meter 2nd Generation

Coriolis mass flow meter 2nd Generation

  • Size up to DN80
  • Measuring range 60…80.000 kg/h
  • Full welded stainless steel housing 1.4301/304L.
  • Measuring accuracy:0.1%
  • Integrated heating jacket (optionally)
  • DNV Approval
Type TMU-HF
TMU-S100.399.png: Coriolis mass flow meter - High Flow

Coriolis mass flow meter - High Flow

  • High flow rate ranges up to 2.200 t/h
  • Process connection up to DN 400/16″
  • Pressure resistant up to 40 bar
  • Integrated heating jacket (optionally)
Type HSA
Sonderloesungen.png: Customized solutions

Customized solutions

  • Tailored custom solution to meet every need.
  • We are specialists in custom production of all kinds.
  • Ask our engineers for free assistance
Type BGN
BGN - All-Metal Variable Area Flow Meter

All-Metal Variable Area Flow Meter

  • All-metal design
  • High temperature versions up to 350 ° C
  • Process pressure up to 600 bar
  • Electronic transmitter
  • Special materials e.g. Hastelloy or Monel
  • PTFE – Lined
  • Integrated heating jacket (optionally)
Type BGF
BGF-S-Armatur-DN50PN40-MR50.217.png: For all fitting positions

For all fitting positions

  • For all flow directions
  • All-metal design
  • High temperature versions up to 200 °C
  • Process pressure up to 600 bar
  • Electronic transmitter
  • Integrated heating jacket (optionally)
Type KDS,BGK
KDS-R.280.png: All Metal Design – Variable Area Flow Meter

All Metal Design – Variable Area Flow Meter

  • All-metal design for low-flow applications
  • Liquids and gases
  • 4…20 mA or switch
  • Differential pressure regulating of inlet and outlet pressure
  • Adjusting valve
  • Flange or threaded connection
Type V31
V31.139.png: Variable Area Flowmeter / Switch

Variable Area Flowmeter / Switch

  • 2 Limit switches
  • Float of stainless stell or PVDF.
  • Flange-, thread-, hose clip and bonded connection
  • Mounting length 375 / 400 / 425 / 450 / 500 mm
Type K09,K12,K17
K09.bip_.137.png: Low Volume – variable area – with glass tube

Low Volume – variable area – with glass tube

  • Mounting length 90 / 125 / 175 / 320 mm
  • Ranges 0,02…0,25 bis 10…100 l/h Water
  • Differential pressure regulating of inlet and outlet pressure
  • Adjusting valve
  • Switches
Type KSK,KSM
csm_schwebekoerper_ksk-ksm-vkn_01_ed7226adcf.png: Variable Area Flow Meter – Plastic tube

Variable Area Flow Meter – Plastic tube

  • Plastic measuring tube trogamide, polysulfone or PTFE
  • Accuracy ± 2% FS
  • For liquids up to 50.000 l/h and gases up to 1420 Nm3/h
  • Flange -, threaded, hose and glue connections
Type TSK
TSK_m.png: Flap Flow Meter

Flap Flow Meter

  • Design – Sandwich
  • From DN25/1″ to DN600/24″
  • Various wetted materials
  • Electrical transmitter ES

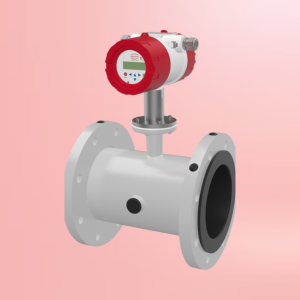

Type EPS
EPS-E-DN150.webp: In-Line Magnetic-inductive flow meter

In-Line Magnetic-inductive flow meter

  • High measurement accuracy
  • High repeatability
  • Various linings
  • Grounding electrode
Type PIT
PIT-UMF2B mit Ausbauvorrichtung mit Prozessrohr.239.png: Magnetic-inductive insertion sensor

Magnetic-inductive insertion sensor

  • Volume flow measurement without pressure loss
  • For pipe sizes from DN 125 to DN 2000
  • Fast and cost-effective installation, even in hard-to-reach places.
  • Under operating conditions mountable or dismountable
  • Materials applicable on rich wide range of applications.
Type PITe
PITe.141.png: Magnetic-inductive insertion sensor – Economy Line

Magnetic-inductive insertion sensor – Economy Line

  • Suitable for pipe diameter up to DN 400 / 16 inch
  • Remote version with fix cable connection
  • Low space requirement
  • Robust and maintenance-free
Type MIM
mim 1.png: All metal magnetic-inductive flow meter

All metal magnetic-inductive flow meter

  • Flow- and temperature- measuring
  • Dosing function
  • Rotatable TFT display
  • Drinking water approval
Type DVH
DVH-V-801S-LL2S0-H.bip_.254.png: Vortex flow meter – Inline design

Vortex flow meter – Inline design

  • Measurement of liquids, gases and steam
  • For pipes up to DN300 (12″)
  • Flange and wafer mounting
  • Optional integrated pressure and/or temperature sensor
  • Reduced version for expanded measuring range
  • Energy consumption measurement
Type DVE
DVE-VSLL2S0A-H.228.png: Vortex flow meter – Insertion design

Vortex flow meter – Insertion design

  • Measurement of liquids, gases and steam
  • For pipes up to DN600 (24“)
  • Optional mounting / removal device
  • Optional integrated pressure/temperature sensor
  • Energy consumption measurement

Durchfluss-caticon-20.png Flow measurement made by KOBOLD

Type DOG
DOG-6_Oszillations-Durchflussmesser_für_Gase-1.png: Oscillation Flow Meter for Gases

Oscillation Flow Meter for Gases

  • Measuring range: 0.12…6000 m³/h
  • Flange DN25…200, ANSI 1…8″
  • pmax: 25 bar / tmax: +120 °C (Ex +60 °C)
  • Accuracy: ±1.5% of reading
  • Pulse output
  • Digital display
  • Flow calculator
Type DON
don-lcd_Ovalrad.png: Positive Displacement Oval Gear Flow Meter

Positive Displacement Oval Gear Flow Meter

  • Measuring range: 0.5…2500 l/min
  • Viscosity: up to 1,000,000 cP
  • Connection:
    G 1/8 … G 4 female thread
    Flange DN25…100 (1 … 4″)
  • Material: Aluminum, stainless steel
  • pmax: 400 bar / tmax: 150 °C
  • Accuracy: ±0.2 … 1 % of reading
