High pressure Coriolis for Hydrogen Applications
- Optimized for H2 application
- 1000+ bar process pressure.
- OIML R139:2018 Certificate.
- for hydrogen refueling operations according to worldwide standard – SAE J2601.
- Compact design.
- Any mounting position.

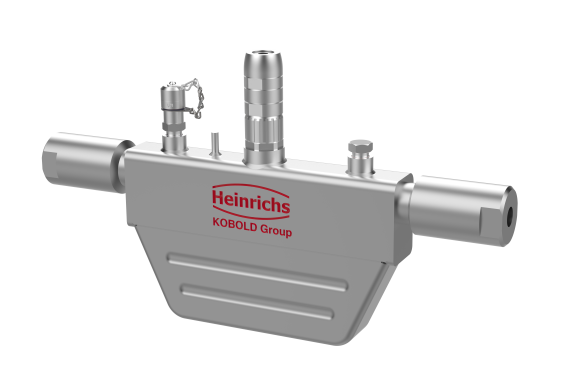

The TMU-W Coriolis mass flow meter by Heinrichs Messtechnik GmbH is the first of its kind to achieve OIML R139:2018 certification “Organization International de Métrologie Légale” in terms of measuring accuracy at high pressure. Therefore, our extensive experience in developing and manufacturing high-precision measurement instruments underpins our knowledge, guaranteeing this meter’s unparalleled measuring accuracy at high pressures and its ability to tackle the unique challenges presented by hydrogen. Designed for high-pressure hydrogen applications, especially for vehicle fueling stations, the TMU-W sets a new standard in the industry.
The Flowmeter for Hydrogen
The automotive fueling sector in mind, we developed the TMU-W series of products. This multipurpose product has other potential uses in other domains as well. Its main characteristics consist of:
- Impressive precision
- Robustness against vibrations
- Versatility in installation positions
- Compact design with a fully welded stainless-steel housing
- Operating pressure over 1000 bar
- OIML R139:2018 approval
- Compliance with SAE J2601 for hydrogen refueling stations
Hydrogen as a Sustainable Option
The enormous energy demands of modern society have had a negative impact on the climate. As a replacement for fossil fuels, hydrogen is superior due to its great efficiency and little environmental effect. Over the past decade, Heinrichs has been a leading provider of measuring solutions for H2 vehicle dispensers in the high-pressure hydrogen industry.
Managing hydrogen’s extremely porous nature and handling pressures greater than 1000 bar are two technological obstacles that must be overcome in order to compress elemental hydrogen to its high energy density. Heinrichs made the TMU-W product line using advanced simulation methods (CSM, FEM, CFD, CEM, FSI, and TFSI) to get around these problems and make sure that high-pressure hydrogen applications have the best Coriolis sensors.
Futuristic design for future technology
For the development of the TMU-W the latest techniques in the simulation of structure and flow conditions were applied:
- CSM (Computational Structural Mechanics)
- FEM (Finite Element Method)
- CFD (Computational Fluid Dynamics)
- CEM (Computational Electromagnetics)
- FSI (Fluid Structure Interaction)
- TFSI (Thermal Fluid Structural Interaction)
These techniques allow a precise virtual assessment of complex, coupled behaviours meaning the specific characteristics of H2 high pressure measurement can be addressed directly. The result was the rapid development of an optimised Coriolis sensor.
Applications
The high-pressure Coriolis TMU-W flow meter is engineered for precision and reliability in high-pressure environments. This advanced device excels at accurately measuring the flow of a variety of liquids and gases, even under challenging conditions. The TMU-W is particularly designed for applications where high pressure and accurate flow measurement are critical.
- Hydrogen Filling Stations
The TMU-W is optimized for hydrogen refueling stations, designed to handle the extreme pressures and rigorous standards required for dispensing hydrogen at pressures exceeding 1000 bar. - High-Pressure Applications
In industries such as oil and gas and chemical processing, the TMU-W ensures accurate and reliable flow measurement, even under extreme pressure. Its construction supports the precise handling of gases and liquids in challenging conditions. - Oil and Gas Industry
In the oil and gas sector, the TMU-W flow meter plays a vital role in ensuring accurate measurement of crude oil, natural gas, and various refined products. Its robust construction and high-pressure capabilities make it suitable for use in upstream exploration, midstream transportation, and downstream refining processes. The meter’s precision ensures that flow rates are monitored accurately, helping to optimize operations and maintain safety standards. - Chemical Processing
The chemical industry often deals with corrosive and high-pressure chemicals that require precise measurement for both process control and safety. The TMU-W’s corrosion-resistant materials and high-pressure handling capability make it an ideal choice for measuring aggressive chemicals and maintaining the integrity of chemical reactions. Its accuracy and durability contribute to improved process efficiency and product quality. - Research and Development
For R&D applications involving high-pressure experiments or testing, the TMU-W offers precise and reliable measurements that are essential for experimental accuracy. Its ability to handle high pressures and its advanced measurement technology make it a valuable tool for researchers and developers working on innovative projects.
To sum up, the High-Pressure Coriolis TMU-W is an accurate and flexible flow meter that can handle high pressures in a variety of settings and jobs. It is a crucial part of process optimization and quality assurance in high-pressure settings, thanks to its sturdy construction, precise measuring capabilities, and capacity to adapt to difficult situations.
Special features
The TMU-W Coriolis mass flow meter is specifically designed for hydrogen dispenser stations, ensuring unmatched precision and durability in high-pressure hydrogen applications. Its ability to operate at pressures exceeding 1000 bar makes it an industry leader for hydrogen refueling stations. Certified under OIML R139:2018, this meter ensures accurate, reliable, and compliant hydrogen filling operations, making it an essential tool for hydrogen refueling stations.
Key special features include:
- Hydrogen Refueling Station Ready
Exceeds the stringent requirements of OIML R139:2018, making it ideal for hydrogen filling stations where pressures exceed 1000 bar. - High-Pressure Capability
Designed for hydrogen applications with working pressures above 1000 bar. - Robust Design
Compact and fully welded stainless-steel housing ensures the meter operates effectively even under challenging conditions such as vibrations and varied installation positions. - Advanced Technology
The TMU-W incorporates advanced simulation techniques such as CSM, FEM, CFD, and others to guarantee precise, accurate measurement and long-lasting performance.
Technical data
- Sensor: TMU-W
- System: Coriolis dual-pipe design
Measuring range
- TMU-W004: max. 4 kg/min H2 (PNom 1000 bar)
- TMU-W006: max. 16 kg/min H2 (PNom 500 bar)
Accuracy
- Liquids: ± 0,1% of reading ± zero point stability
- Gas: ±0,5 % of reading ± zero point stability
Mechanical Design
- Wetted parts: 1.4571 (316 TI)
- Secondary containment:1.4301 (304L)
- Process connections:
- 6MF 9/16-18 UNF
- ½” NPT (IG) (optionally)
- Hofer 7⁄8″ (optionally)
- Max. Process pressure:
- TMU-W004: 1000 bar (20°C)
- TMU-W006: 500 bar (20°C)
- Pressure loss @ Qmax TMU-W004: ~15 bar (max) (±10 %)
- Process temperature: -40…+100°C (H2 Dispenser -40…+55°C)
- Ambient Temperature: -40…+55°C
- Ingress Protection: IP67 (EN60529)
Certificates and Approvals
- ATEX / IECEx Approval: II 1/2G Ex ia IIC T2…T6 Ga/Gb
- NEPSI: Ex ia IIC T2…T6 Ga/Gb
- OIML: R139:2018
Transmitter
- Model: UMC4-RM
- Power supply: 19…36 VDC
- Outputs: galvanically isolated
- Analogue: 2 x 4…20 mA HART®, passive
- Pulse (or Frequency) passive, via Optocoupler as Frequency. Max. 1 KHz
- Status: passive, via Optocoupler
Option: Second pulse output (90° phase-shifted)
- Ambient Temperature: -40…+55°C
- Ingress Protection: IP68 (EN60529)
- ATEX Approval:
- Field housing: II 3(1)G Ex ec [ia Ga] IIC T6..T3 Gc
(Protection class terminal compartment Ex d) - Rack mound housing: II 3G Ex ec [ia Ga] IIC T3-T4 Gc
(Rack mound housing), Ambient up to 60°C
- Field housing: II 3(1)G Ex ec [ia Ga] IIC T6..T3 Gc
- CE-Marking:
- 2014/30/EU (EMC)
- 2014/34/EU (ATEX)
- 2014/35/EU (LVD)
- 2014/68/EU (PED)
- Communication: HART®
- Approvals: OIML-CS R139:2018
